COSWHEEL CT20S

Performance

• Top Speed: Class 2/3, 28+ Mph (45+Km/h); Off-road Mode +++ (60V)
• Range: 55+miles (88km) in Class-2 throttle-only mode (pure electricity); 100+miles (161km) in Class-1 PAS (pedal assist)
• Motor: 60V Peak 2000W (Rated 1500W) Brushless Rear Hub Motor 120N.m
• Battery: 60V 27.5Ah Battery (Lithium 18650 Cells)
• Energy: 1650Wh
• Front Suspension: 20" Shoulder Shock Absorbing, 80mm Travel
• Rear Suspension: 180mm Travel
• Brakes: Double Piston Oil Brake, Equipped with 180mm Stainless Brake Disc
• Tires: Off-road Tire 20" * 5.0" IA-2149 with AV+Lining
• Throttle: Grip Twist Throttle (Old) / Thumb Throttle (New)

Electric Specifications

• Charger: 60V5A Charger
• Charging Time: 3.5-8.0 Hours
• Display: Easy Read LCD Display
• Controller: 60V 35A
• Front Light: Classic Angel Eye Headlight, 120 LUX
• Rear Light: LED
• Pedal Assist: 5 Levels
• Sensors: Speed Sensor

Components

• Frame: Hydroformed Triple-Butted 6061-T6 Aluminium Alloy
• Pedal: Aluminum Alloy Pedal, with Reflect-light, Axis 9/16 x2
• Crank: 1/2 "*3/32"*46T 7-speed ED Tooth Plate
• Rear Derailleur: Shimano 7-Speed
• Chain: 7-speed Anti-rust, 1/2" * 3/32"
• Handlebars: Sand Black 31.8*660

DIFFERENT EXPERIENCE

1. 60V 1500W(peak 2000W) super power brushless motor, peak output 2000W.
2. 120N.m super torque, easy to climb up a 35 degree slope.
3. High-quality front and rear shock absorbers with a suspension stroke of 180MM.

GO FAR AWAY HAPPILY

1.Peak 2000w(rated 1500w) high -speed brushless motor, helping you unlock various possibilities.
2.48V 25/35AH and 60V 27.5AH 18650Li-ION BATTERY to keep your battery life worry-free.
3.The maximum speed can reach 65km/h(40mph), gives the feeling of flying!

SMART APP

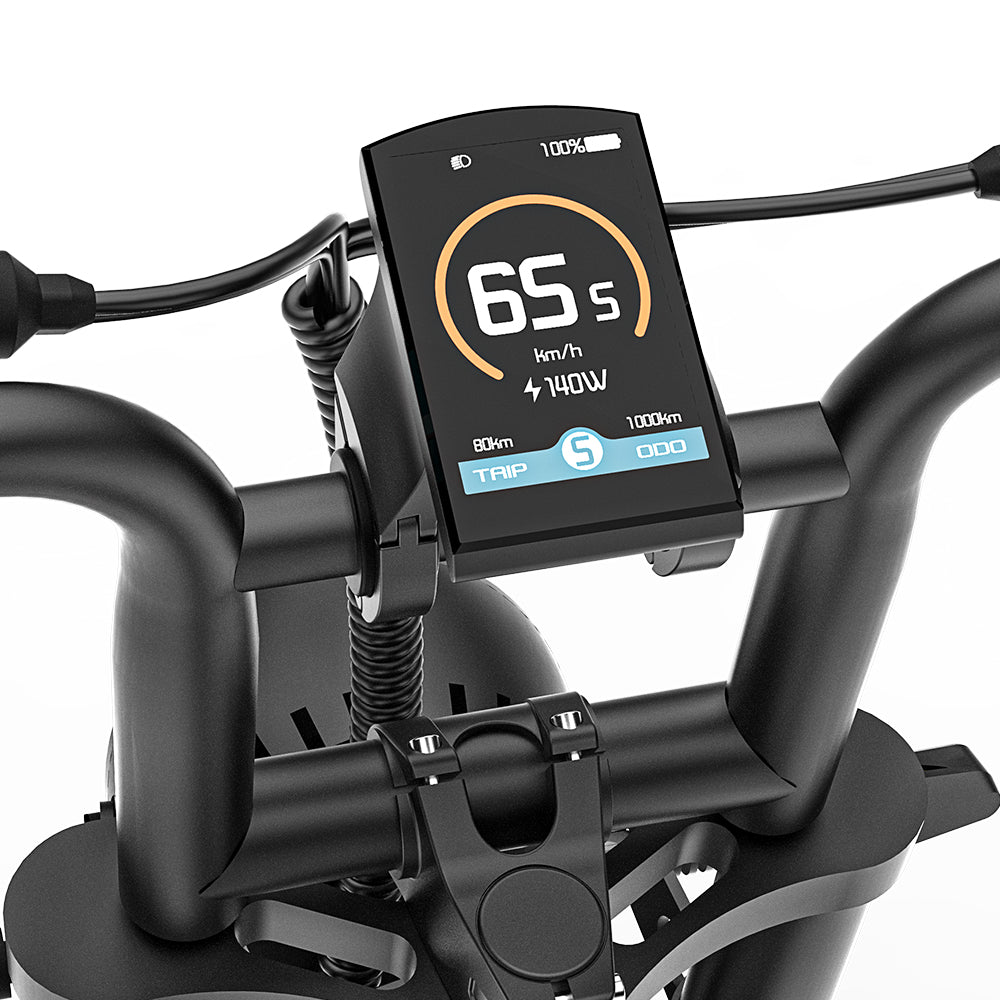

The CT20S LED display can be connected to an iphone to locate the ebike's position and view various parameters at any time.



7-Speed Gearing

CT20S is fully equipped with Shimano seven-speed cassette, which allows you to drive smoothly and climb easily on steep roads.



Deluxe Fenders

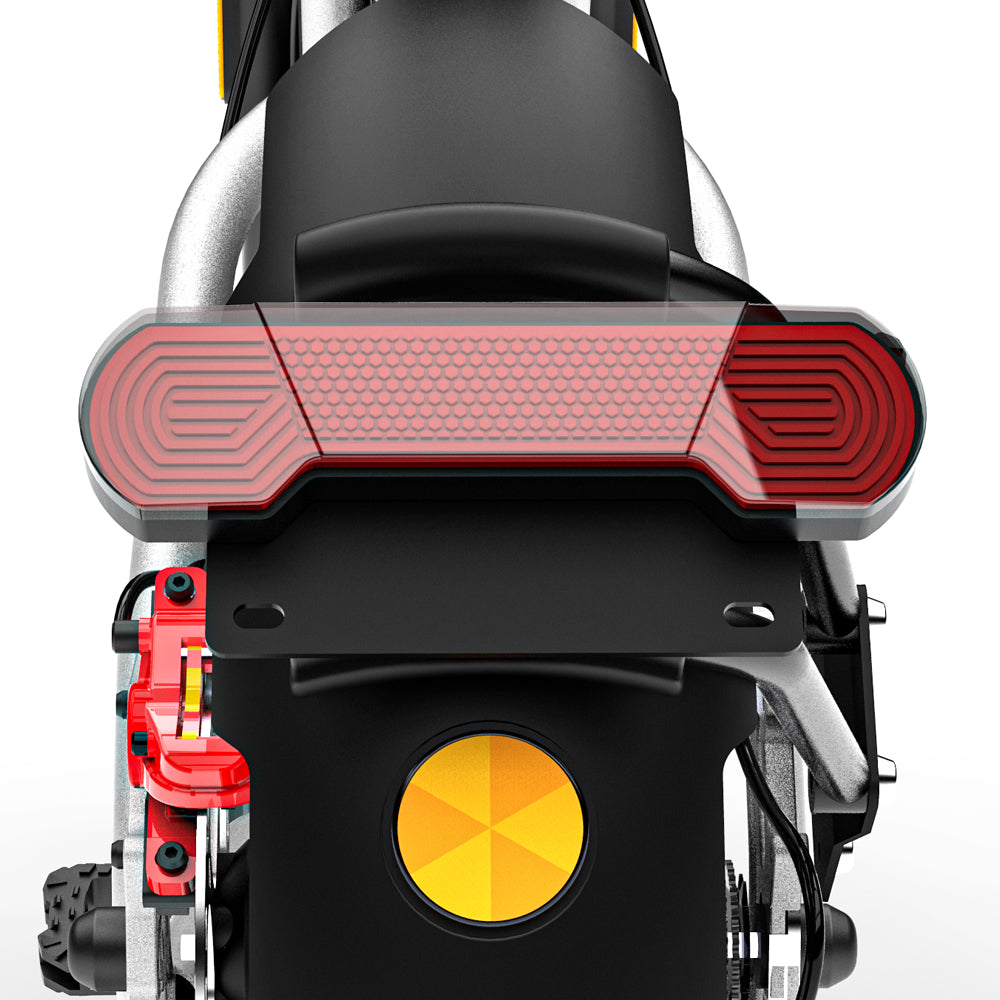

Equipped with double protection fenders, it is sturdy and durable, and the rear taillight LED is mounted on the fenders, making it look more luxurious.

Oil Brake

Front and rear motorcycle-level dual-piston hydraulic oil brakes, equipped with 180MM high-quality brake discs, make your riding safer.

Soft Seat

With soft and thick leather seat, make your ride more comfortable.

Front Rear Suspension

Both front and rear shock absorption, suspension travel 180MM, good resilience, so you are not afraid of any road.
