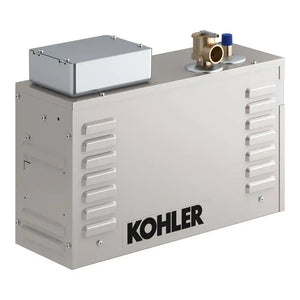

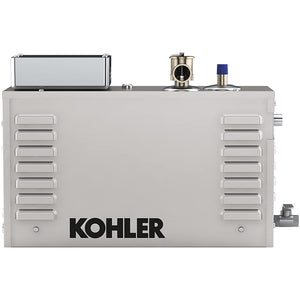

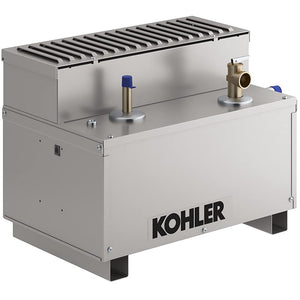

Kohler Invigoration Series Steam Shower Generator
$2,267.89 - $7,188.04
Kohler Invigoration Series Steam Shower Generator
Features
-
Durable Insulation: Crafted from insulated stainless steel for superior durability and efficient heat retention.
-
Resistance Features: Built to resist corrosion and tarnish, ensuring a long-lasting, pristine look.
-
Rapid Steam Generation: Equipped with Fast Response Technology for steam production in just 60 seconds.
-
Effortless Cleaning: Features one-touch automatic cleaning for hassle-free maintenance.
-
Consistent Steam Output: Engineered to maintain temperature for uniform steam delivery.
-
Safety First Design: Constructed to be safe to the touch, enhancing user safety.
-
Compatibility: Operates on the standard 240V for wide usability.
-
Reliability Guaranteed: Backed by a 3-year limited warranty for quality and reliability.
-
Eco-Conscious: Designed with eco-friendliness in mind for sustainable usage.
Package Includes
- Kohler Steam Generator (5/ 7/ 9/ 11/ 13/ 15/ 18/ 22/ 26/ 30 kW)
- Installation & Operation Manual
- 3 Year Limited Warranty
Specifications
Specific Differences in Steam Shower Generator Specs:
The size of the shower will determine the size of the generator. The size of the generator will determine electrical requirements.
Please refer the model comparison chart below to pick the right generator for your requirements
| Model | Max. Room Size (Cu. Ft.) | Power Rating (kW) | Amperage (A) | Dimensions (W x D x H)" | Heater Weight (lbs) |
| K-5525-NA | Upto 84 | 5 | 28 | 19.25" x 8.5" x 12.5" | 29 lbs |
| K-5526-NA | 85-140 | 7 | 36 | 19.25" x 8.5" x 12.5" | 29 lbs |
| K-5529-NA | 140-240 | 9 | 45 | 19.25" x 8.5" x 12.5" | 29 lbs |
| K-5531-NA | 241-317 | 11 | 46 | 19.25" x 8.5" x 12.5" | 29 lbs |
| K-5533-NA | 318-447 | 13 | 59 | 19.25" x 8.5" x 12.5" | 53 lbs |
| K-5535-NA | 448-500 | 15 | 68 | 19.37" x 14" x 13.75" | 53 lbs |
| K-5539-NA | 501-550 | 18 | 45 (Per Generator) | 19.25" x 8.5" x 12.5" (Per Generator) | 29 lbs (Per Generator) |
| K-5543-NA | 551-634 | 22 | 46 (Per Generator) | 19.25" x 8.5" x 14.5" (Per Generator) | 29 lbs (Per Generator) |
| K-5546-NA | 634-894 | 26 | 59 (Per Generator) | 19.25" x 8.5" x 12.5" (Per Generator) | 53 lbs (Per Generator) |
| K-5547-NA | 895-1000 | 30 | 68 (Per Generator) | 19.37" x 14" x 13.75" (Per Generator) | 53 lbs (Per Generator) |
Note:

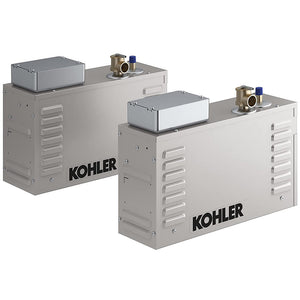

- The K-5539-NA (18 kW) Generator is a duo of two K-5529-NA (9 kW) Generators
- The K-5543-NA (22 kW)Generator is a duo of two K-5531-NA (11 kW) Generators

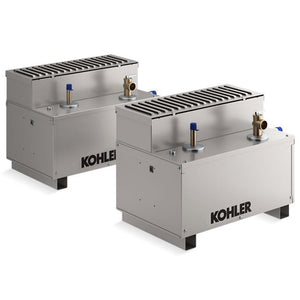

- The K-5546-NA (26 kW)Generator is a duo of two K-5533-NA (13 kW)Generators
-The K-5547-NA (30 kW)Generator is a duo of two K-5535-NA (15 kW)Generators
-
[View Installation & Operation Manual here - For K-5525-NA, K-5526-NA, K-5529-NA, K-5531-NA, K-5539-NA, K-5543-NA,For K-5533-NA, K-5535-NA, K-5546-NA, K-5547-NA]
-
[Download Specsheet here - K-5525-NA, K-5526-NA, K-5529-NA, K-5531-NA, K-5533-NA, K-5535-NA, K-5539-NA, K-5543-NA, K-5546-NA, K-5547-NA]
-
[View Service Parts here - K-5525-NA, K-5526-NA, K-5529-NA, K-5531-NA, K-5533-NA, K-5535-NA, K-5539-NA, K-5543-NA, K-5546-NA, K-5547-NA]
-
